Next Generation Tri-Filar Inductor

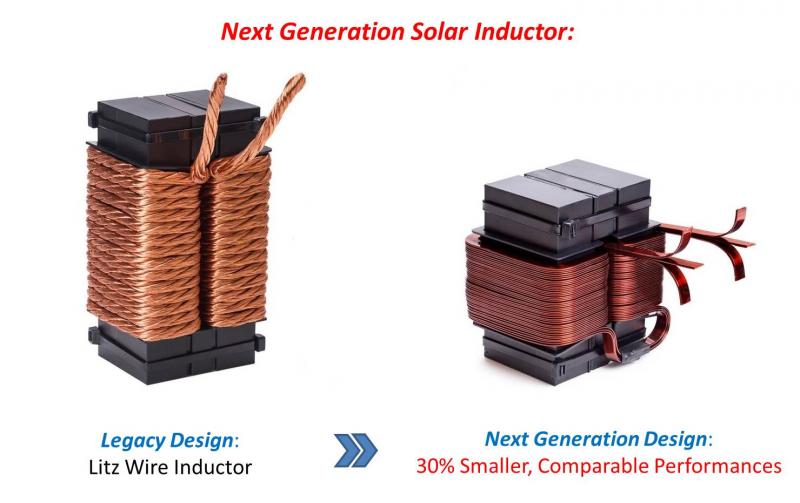

Tri-Filar inductor for solar inverter, based on rectangular wires and patented winding technology.Next Gen ComparisonNext Generation Inductor for solar inverters, designed and manufactured based on patent-pending new winding technology. Its unique design results in >90% fill factor, dramatically lower DC resistance and 30% smaller form factor – relative to traditional Litz-wire inductor with comparable performance.

Technical data:

Inductance:
900 µH ±10%
RDC:
12 mΩ
Working frequency:
Insulated copper
Storage temperature:
-40° to 130° C
(-40° to 266° F)
Maximum working temperature:
130°C
(266°F)
Maximum current:
60 A RMS
Saturation current:
95 A
Resonant frequency:
> 1 MHz
Dielectric strength for min 15 sec:
>3.5 KV
Dimensions L x W x H:
120 x 100 x 120 mm
(4.7 x 3.9 x 4.7 in)
Weight:
10 Kg
(22 lbs)
Quality standards:
UL certified materials
UL 1446 class B
