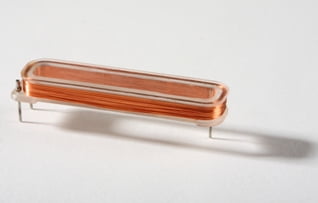

PCB-Mount Antenna
Antenna coil on a bobbin with thru-hole pins for PCB mounting.
Technical data:
Shape:
Rectangular
Core type:
Plastic bobbin
Wire material:
Insulated copper
Wire diameter:
0.1 mm
(39 AWG)
(39 AWG)
Windings:
216
Outside diameter:
10 mm
(0.39 in)
(0.39 in)
Length:
30 mm
(1.18 in)
(1.18 in)
